Owner’s Manual

Select your Skywatch movement type

Chronograph
2 or 3 sub-dials

Caliber 5021.D / 5030.D

1

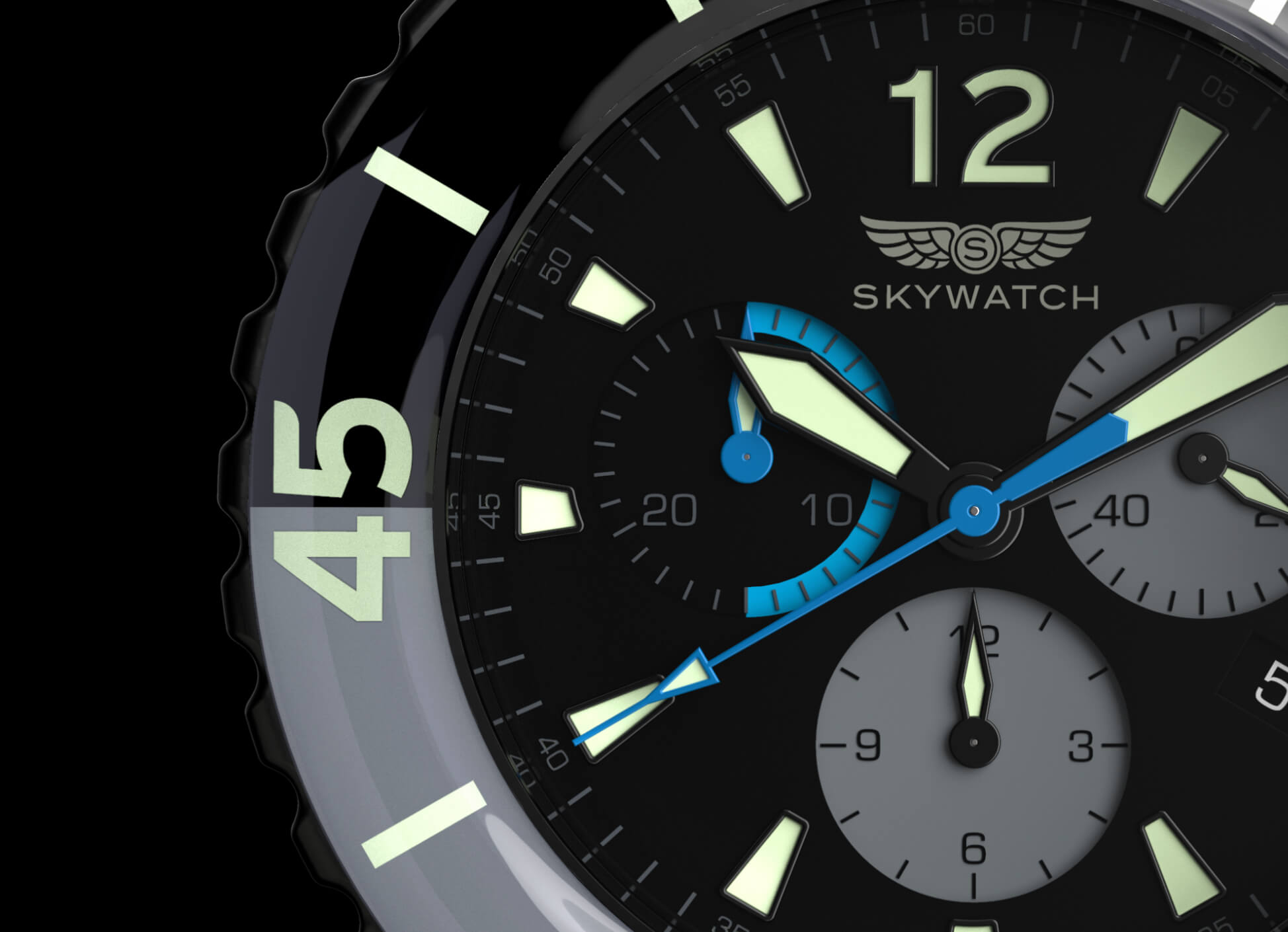

The Skywatch Chronograph

Water resistance is tested to a depth of up to 200 meters. Accuracy is assured by a Swiss made movement. Robustness is the result of meticulous design elements and hardy stainless steel construction.



JUMP TO A SECTION

2

Setting Time & Date

Skywatch timepieces water resistant to 100M have a push-in crown.

Skywatch timepieces water resistant to 200M, which includes all currently produced models, have a spring-loaded screw-in crown. Turn the crown counter-clockwise to unscrew and open it. To close the crown, press the crown in while screwing it clockwise into the case until it's tight.

Always make sure the crown is carefully closed or screwed-in well before exposing the watch to moisture.

With the crown in positionI, , the watch is in operating mode.

With the crown in position II, , you can set the date.

With the crown in positionIII, , you can set the time.

When done, always be sure to return the crown to position I, .

3

Rotating Bezel Function

The uni-directional rotating bezel can be used as a handy timing device. For example, you’re diving and have 20 minutes of oxygen remaining... no doubt something worth keeping track of. If the time is 2:30, rotate the bezel arrow counter-clockwise to align with the minute hand. When the minute hand reaches the 20 minute mark on the bezel, you know it’s time to ascend to the surface in a calm and orderly manner.

This function is equally useful for parking meters or boiling pasta.

4

The Chronograph

5

Enjoying Chrono Freatures

START/STOP: Press A
RESET: Press B

TIMING 1ST PLACE AND RUNNER-UP

Press A to start. Press B when the winner crosses the
finish line. Then press A when the runner-up finishes. The
chronograph will continue to show the winner’s time. It’s
only when you press B again that the runner-up’s time
will be shown. Press B to reset.

TIMING MORE THAN TWO COMPETITORS

Press A to start. Press B to pause and take note of a time.

6

Adjusting Misaligned
Chronograph Hands

If the chronograph hands are misaligned after resetting the chronograph, perform the following...

With the crown at position III, press A and B simultane - ously until the chronograph second hand sweeps 360°. Then press A until the chronograph second hand is aligned to zero. Now press B once. Then press A until the chronograph hour hand is aligned to zero. Press B again. Then press A until the chronograph minute hand is aligned to zero.

When done, be sure to return the crown to position I.

7

Warning

WATCHES ARE WATER RESISTANT, NOT WATER PROOF.

AVOID EXPOSING THE WATCHES TO EXTREME TEMPERATURES, PROLONGED DIRECT SUNLIGHT, HOT TUBS, STEAM ROOMS, WARM BATHS, MAGNETIC FIELDS, SHOCK OR IMPACT. NEVER ever ADJUST THE CROWN OR OPERATE THE CHRONOGRAPH UNDER WATER. CLOSE THE CROWN BEFORE EXPOSURE TO WATER.

WATER RESISTANCE

YOUR WATCH IS tested to 100M or 200M.

If your watch is water resistant to 100M, it's meant solely for recreational swimming. Only watches tested to 200M or more are recommended for action water sports, like scuba diving or spear fishing.

8

Love and Care

For optimal performance and longevity, submit your watch to Skywatch for maintenance every two years and for battery replacement as needed.

CLEANING THE SAILCLOTH OR RUBBER STRAP

Have your valet mix a dab of laundry detergent with warm water and, using a toothbrush, gently caress the surface of the strap with the mixture. Be sure not to saturate the strap or the mixture could seep into the stitching. Wipe the strap surface with a damp cloth and dry it with a soft dry cloth.

CLEANING THE METAL BRACELET

Use warm soapy water and a toothbrush. Rinse thoroughly with water and dry with a soft cloth.

9

Repair & Warranty information

If your watch needs repair or a new battery, go to
Service Your Skywatch

SKYWATCH will, within two (2) years from the date of purchase from an authorized SKYWATCH agent, repair or replace (at SKYWATCH’s option) your watch, with a comparable model, free of charge, if it proves to be defective in material or workmanship under normal use. Not covered by the warranty: batteries, crystals, watch cases, straps, bracelets, normal wear and tear, or loss or theft. The warranty is void if you open the caseback or if moisture gets into the watch by misuse or negligence, such as not pushing or screwing in the crown and exposing the watch to moisture.

NO IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS, SHALL APPLY TO THIS PRODUCT FOR ANY PERIOD BEYOND THE ONE (1) YEAR TERM OF THIS WRITTEN WARRANTY. SKYWATCH IS NOT LIABLE, UNDER ANY CIRCUMSTANCE, FOR INCIDENTAL DAMAGES SUSTAINED IN CONNECTION WITH THIS PRODUCT. ANY RECOVERY MAY NOT BE GREATER THAN THE PURCHASE PRICE PAID FOR THIS PRODUCT.

This warranty gives you specific legal rights. You may also have additional legal rights under applicable law, which may vary from country to country and state to state, that
are not affected by the terms of this warranty.

3-Hand

Caliber 515

1

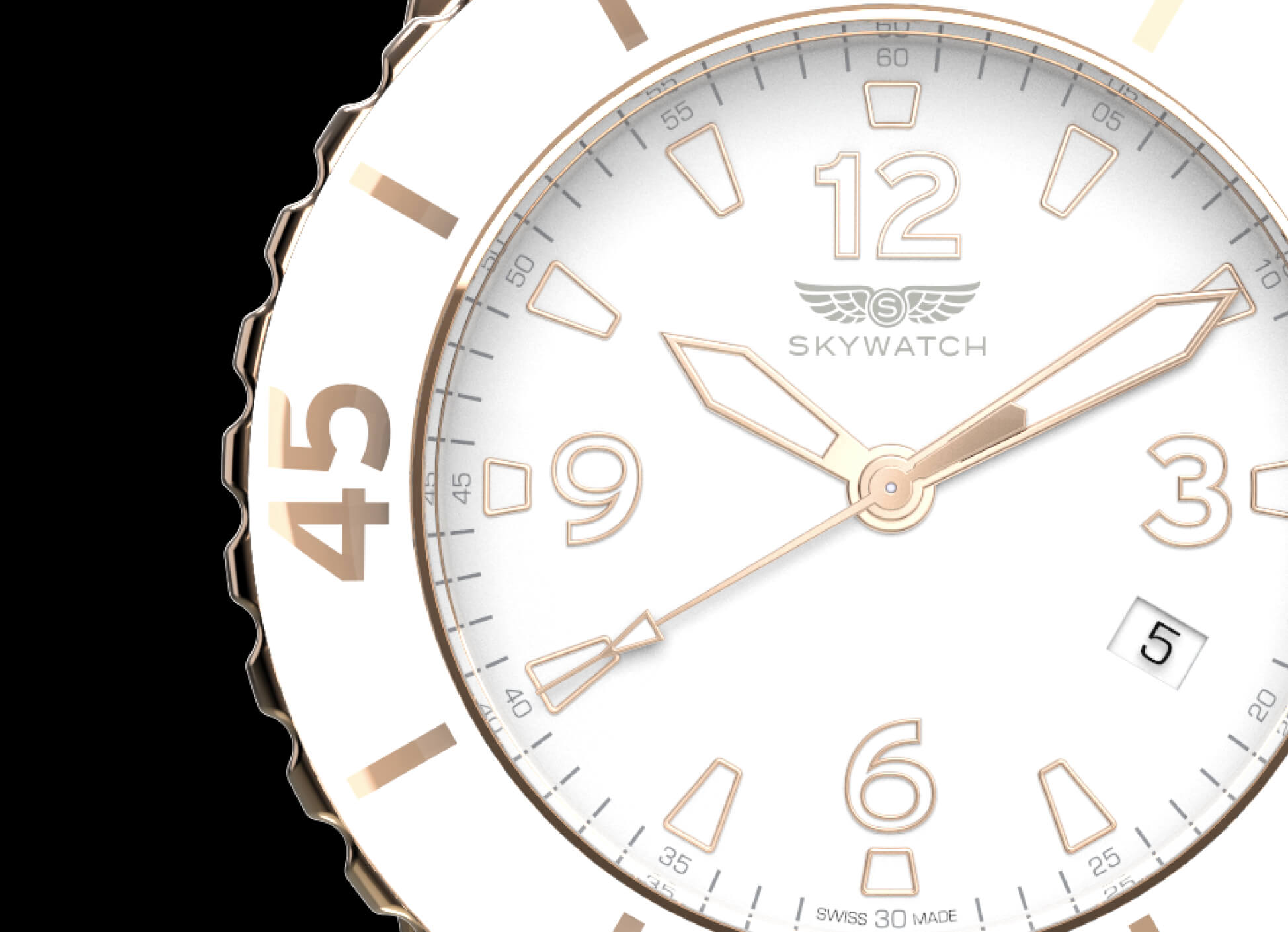

The Skywatch 3-Hand

Water resistance is tested to a depth of up to 200 meters. Accuracy is assured by a Swiss made movement. Robustness is the result of meticulous design elements and hardy stainless steel construction.

JUMP TO THE SECTION

2

Setting Time & Date

Skywatch timepieces water resistant to 100M have a push-in crown.Skywatch timepieces water resistant to 200M, which includes all currently produced models, have a spring-loaded screw-in crown.

Turn the crown counter-clockwise to unscrew and open it. To close the crown, press the crown in while screwing it clockwise into the case until it's tight.

Always make sure the crown is carefully closed or screwed-in well before exposing the watch to moisture.

With the crown in position I, the watch is in operating mode.

With the crown in position II, you can set the date.

With the crown in position III, you can set the time.

When done, always be sure to return the crown to position I.

3

Rotating Bezel Function

The uni-directional rotating bezel can be used as a handy timing device. For example, you’re diving and have 20 minutes of oxygen remaining... no doubt something worth keeping track of. If the time is 2:30, rotate the bezel arrow counter-clockwise to align with the minute hand. When the minute hand reaches the 20 minute mark on the bezel, you know it’s time to ascend to the surface in a calm and orderly manner.

This function is equally useful for parking meters or boiling pasta.

4

Warning

WATCHES ARE WATER RESISTANT, NOT WATER PROOF.

AVOID EXPOSING THE WATCH TO EXTREMETEMPERATURES, PROLONGEDDIRECT SUNLIGHT, HOT TUBS, STEAM ROOMS, WARM BATHS, MAGNETIC FIELDS, SHOCK OR IMPACT. NEVER ever ADJUST THE CROWN OR OPERATE THE CHRONOGRAPH UNDER WATER. CLOSE THE CROWN BEFORE EXPOSURE TO WATER.

Water Resistance

YOUR WATCH IS tested to 100M or 200M.

If your watch is water resistant to 100M, it's meant solely for recreational swimming. Only watches tested to 200M or more are recommended for action water sports, like scuba diving or spear fishing.

5

Love and Care

For optimal performance and longevity, submit your watch to Skywatch for maintenance every two years and for battery replacement as needed.

CLEANING THE SAILCLOTH OR RUBBER STRAP

Have your valet mix a dab of laundry detergent with warm water and, using a toothbrush, gently caress the surface of the strap with the mixture. Be sure not to saturate the strap or the mixture could seep into the stitching. Wipe the strap surface with a damp cloth and dry it with a soft dry cloth.

CLEANING THE METAL BRACELET

Use warm soapy water and a toothbrush. Rinse thoroughly with water and dry with a soft cloth.

6

Repair & Warranty information

If your watch needs repair or a new battery, go to Service Your Skywatch

SKYWATCH will, within two (2) years from the date of purchase from an authorized SKYWATCH agent, repair or replace (at SKYWATCH’s option) your watch, with a comparable model, free of charge, if it proves to be defective in material or workmanship under normal use. Not covered by the warranty: batteries, crystals, watch cases, straps, bracelets, normal wear and tear, or loss or theft. The warranty is void if you open the caseback or if moisture gets into the watch by misuse or negligence, such as not pushing or screwing in the crown and exposing the watch to moisture.

NO IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS, SHALL APPLY TO THIS PRODUCT FOR ANY PERIOD BEYOND THE ONE (1) YEAR TERM OF THIS WRITTEN WARRANTY. SKYWATCH IS NOT LIABLE, UNDER ANY CIRCUMSTANCE, FOR INCIDENTAL DAMAGES SUSTAINED IN CONNECTION WITH THIS PRODUCT. ANY RECOVERY MAY NOT BE GREATER THAN THE PURCHASE PRICE PAID FOR THIS PRODUCT.

This warranty gives you specific legal rights. You may also have additional legal rights under applicable law, which may vary from country to country and state to state, thatare not affected by the terms of this warranty.
